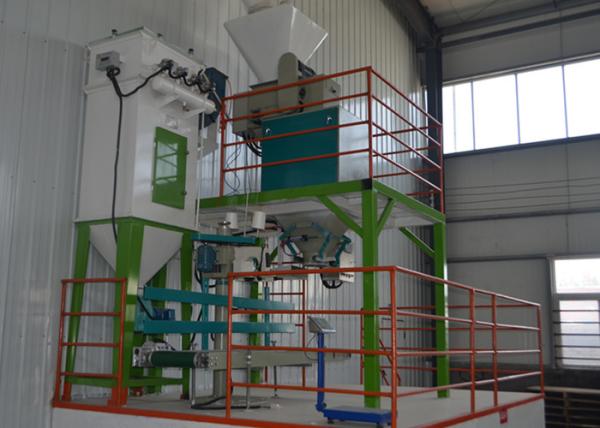

Pellets / Powder Feed Bagging Machine Simple Operation With Instrument Control
This automatic feed bagging machine is a smart packaging&bagging machine scale developed by our company for granular and irregular feed pellet. It adopts pneumatic gate feeding or belt feeding mode and advanced stepless frequency conversion technology.
It is widely is suitable for the table salt, the industrial chemicals, the feed, the medicine, the grain, the food additive uniform flux mobility good pellet or the powdery material quota packing.
Features of Automatic Feed Bagging Machine:
1. The machine needs manual assistance to bag, automatic weighing, bagging, filling, automatic conveying, sewing.
2. Through the instrument control, to ensure the speed and accuracy of cutting.
3. Solve the problem of packaging of special chemical raw materials, with wide application range and simple operation.
4. Adopt high-precision sensor and high-intelligence weighing controller with high measurement accuracy and stable performance.
5. The contact part with the material is made of stainless steel, which has high corrosion resistance.
6. Electrical and pneumatic components are imported components with long service life and high stability.
7. The control cabinet is sealed and suitable for harsh dust environments.
8. Automatic correction of material tolerance, zero point automatic tracking, overshoot detection and suppression, over and under alarm.
Main Parameters of Automatic Feed Bagging Machine:
| Model |
DCS-25F |
DCS-50F |
| Weighing speed(bag/h) |
200-3000 |
300-500 |
| Permissible error |
0.20% |
0.20% |
| Power |
2.2KW |
2.2kw |
| Air supply |
0.4-0.6Mpa; 0.1m3/min |
0.4-0.6Mpa; 0.1m3/min |
